Shanghai Bangying Industrial Co.,Ltd
8 Years
| Ask Lasest Price | |
| Brand Name : | Caterpillar |
| Model Number : | 140H |
| Certification : | CE |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3 sets per week |
| Delivery Time : | withine 7 days |
Used Motor Grader Caterpillar 140H 21T weight 3176C engine with Original Paint
Dimensions | ||
| A. OVERALL LENGTH | 28.6 ft in | 8713 mm |
| B. WIDTH OVER TIRES | 8.1 ft in | 2464 mm |
| D. WHEELBASE | 20.2 ft in | 6169 mm |
| E. REAR GROUND CLEARANCE | 1.1 ft in | 344 mm |
| F. FRONT GROUND CLEARANCE | 2 ft in | 600 mm |
| G. TANDEM AXLE WHEELBASE | 5 ft in | 1523 mm |
| H. BLADE BASE | 8.4 ft in | 2561 mm |

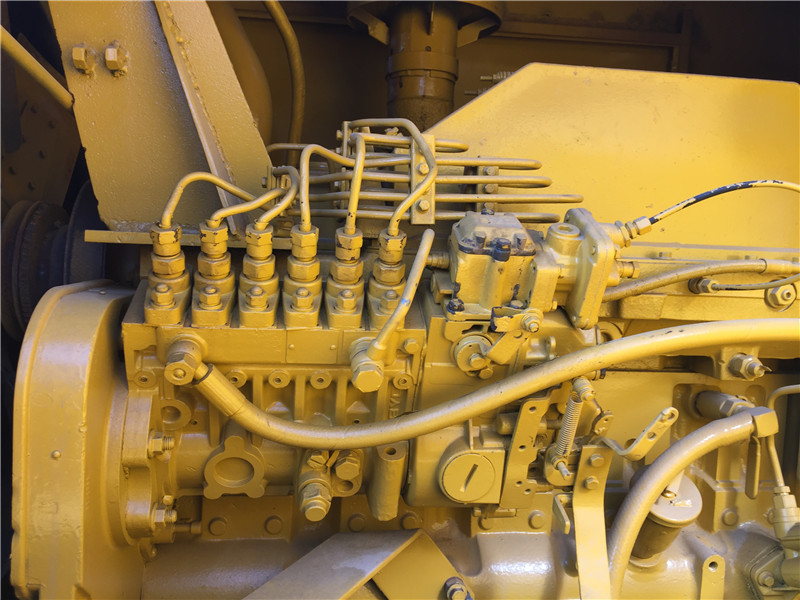

| Engine | ||
| NUMBER OF CYLINDERS | 6 | |
| MAKE | 2236 | |
| MODEL | 3176C DITA ATAAC VHP | |
| NET POWER GEAR 1-2 | 165 hp | 123 kw |
| POWER MEASURED @ | 2000 rpm | |
| NET POWER GEAR 5-6 | 185 hp | 138 kw |
| MAX POWER | 185 hp | 138 kw |
| NET POWER GEARS 7-8 | 185 hp | 138 kw |
| DISPLACEMENT | 629 cu in | 10.3 L |
| NET POWER GEAR 3-4 | 185 hp | 138 kw |
| Operational | ||
| STD OPERATION WEIGHT - FRONT AXLE | 9123 lb | 4138 kg |
| STD OPERATION WEIGHT - REAR AXLE | 23234 lb | 10539 kg |
| STD OPERATION WEIGHT - TOTAL | 32357 lb | 14677 kg |
| MAX OPERATION WEIGHT - FRONT AXLE | 16733 lb | 7590 kg |
| MAX OPERATION WEIGHT - REAR AXLE | 30139 lb | 13671 kg |
| MAX OPERATION WEIGHT - TOTAL | 46872 lb | 21261 kg |
| FUEL CAPACITY | 105 gal | 397 L |
| COOLING SYSTEM FLUID CAPACITY | 10 gal | 38 L |
| HYDRAUILC SYSTEM FLUID CAPACITY | 20.8 gal | 80 L |
| REAR DIFF/FINAL DRIVE FLUID CAPACITY | 12.4 gal | 47 L |
| CIRCLE GEARBOX FLUID CAPACITY | 1.8 gal | 7 L |
| TANDEM CASE FLUID CAPACITY (EACH) | 16.9 gal | 64 L |
| Transmission | ||
| TYPE | direct drive, power shift | |
| NUMBER OF GEARS - FORWARD | 8 | |
| NUMBER OF GEARS - REVERSE | 6 | |
| MAX SPEED - FORWARD | 27.4 mph | 44 km/h |
| MAX SPEED - REVERSE | 21.6 mph | 34.7 km/h |
| Steering | ||
| ARTICULATION ANGLE | 20 degrees | |
| TURNING RADIUS | 24.6 ft in | 7.5 m |
| Front Axle | ||
| WHEEL LEAN | 18 degrees | |
| OSCILLATION - TOTAL | 32 degrees | |
| GROUND CLEARANCE | 2 ft in | 600 mm |
| Hydraulic System | ||
| PUMP TYPE | axial piston | |
| PUMP FLOW | 54.4 gal/min | 206 L/min |
| RELIEF VALVE PRESSURE | 3500 psi | 24150 kPa |
| Moldboard | ||
| MOLDBOARD WIDTH | 12 ft in | 3658 mm |
| MOLDBOARD HEIGHT | 24 in | 610 mm |
| MOLDBOARD THICKNESS | 0.87 in | 22 mm |
| MAX DEPTH OF CUT | 28.1 in | 715 mm |
| SIDE SHIFT LEFT | 20.6 in | 524 mm |
| SIDE SHIFT RIGHT | 26 in | 660 mm |
| BLADE PULL AT MAX WEIGHT | 42184 lb | 19135 kg |
| BLADE DOWN PRESSURE | 28697.6 lb | 13017 kg |
| Circle | ||
| DIAMETER | 60.2 in | 1530 mm |
| SHIFT LEFT | 27.4 in | 695 mm |
| SHIFT RIGHT | 28.7 in | 728 mm |
| MAX REACH OUTSIDE TIRES - LEFT | 74.6 in | 1896 mm |
| MAX REACH OUTSIDE TIRES - RIGHT | 77.9 in | 1978 mm |
| MAX LIFT ABOVE GROUND | 18.9 in | 480 mm |
| BLADE TIP ANGLE - FRONT | 40 degrees | |
| BLADE TIP ANGLE - REAR | 5 degrees | |
| Dimensions | ||
| HEIGHT TO TOP OF ISOMOUNT CAB | 10.3 ft in | 3131 mm |
| OVERALL LENGTH | 28.6 ft in | 8713 mm |
| WIDTH OVER TIRES | 8.1 ft in | 2464 mm |
| WHEELBASE | 20.2 ft in | 6169 mm |
| BLADE BASE | 8.4 ft in | 2561 mm |
| TANDEM AXLE WHEELBASE | 5 ft in | 1523 mm |
| REAR GROUND CLEARANCE | 1.1 ft in | 344 mm |
| FRONT GROUND CLEARANCE | 2 ft in | 600 mm |
Packing & Delivery
1. 40HQ container
Dismantle cabin and tires,most of clients shipped by 40HQ container
2. Bulk cargo ship
No need dismantle,sent to port directly by low bed
Which one is the best,after you told me your port of discharge,i will let you know
Payment Term
(30%+50%+20%)T/T
30% deposit after received the Proforma Invoice
50% after booked the shipping space
20% againest copy of B/L
Superior service
6 months warranty
Free repaint and maintenance
Spare parts supply
24 Hours you can call me
Sara:0086-18715003391
Whatsapp:0086-18715003391
FAQ:
Where is your machines?
Shanghai China
You can sent to our place?
Yes,we can sent to all over the world,you just tell me the port of discharge
How can i pay?
After we confirmed everything,i will make the Proforma Invoice to you,then you sent 30% deposit.Then i will book the shipping space,before shipped, you paid 40%,the balance againest copy of B/L
What is your warranty?
6 months for main parts
We also have CAT 140K 140H 12G 14G motor graders
|
